TP-Link TL-WR940N 450Mpbs Wireless N Router
TP-Link TL-WR940N 450Mpbs Wireless N Router. TP-Link’s TL-WR940N is a high-speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR940N gives users wireless performance at up to 450Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.
Features
Router Mode
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.
Access Point Mode
Transform your existing wired network to a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your room.
Easy Setup and Use
Set up the TL-WR940N in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
Specifications
Wireless
Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
WI-FI Speeds | N450 2.4 GHz: 450 Mbps (802.11n) |
WIFI Range | 2 Bedroom Houses
3× Fixed Antennas |
Wi-Fi Capacity | Legacy |
Working Modes | Router Mode Access Point Mode Range Extender Mode |
Hardware
Processor | Single-Core CPU |

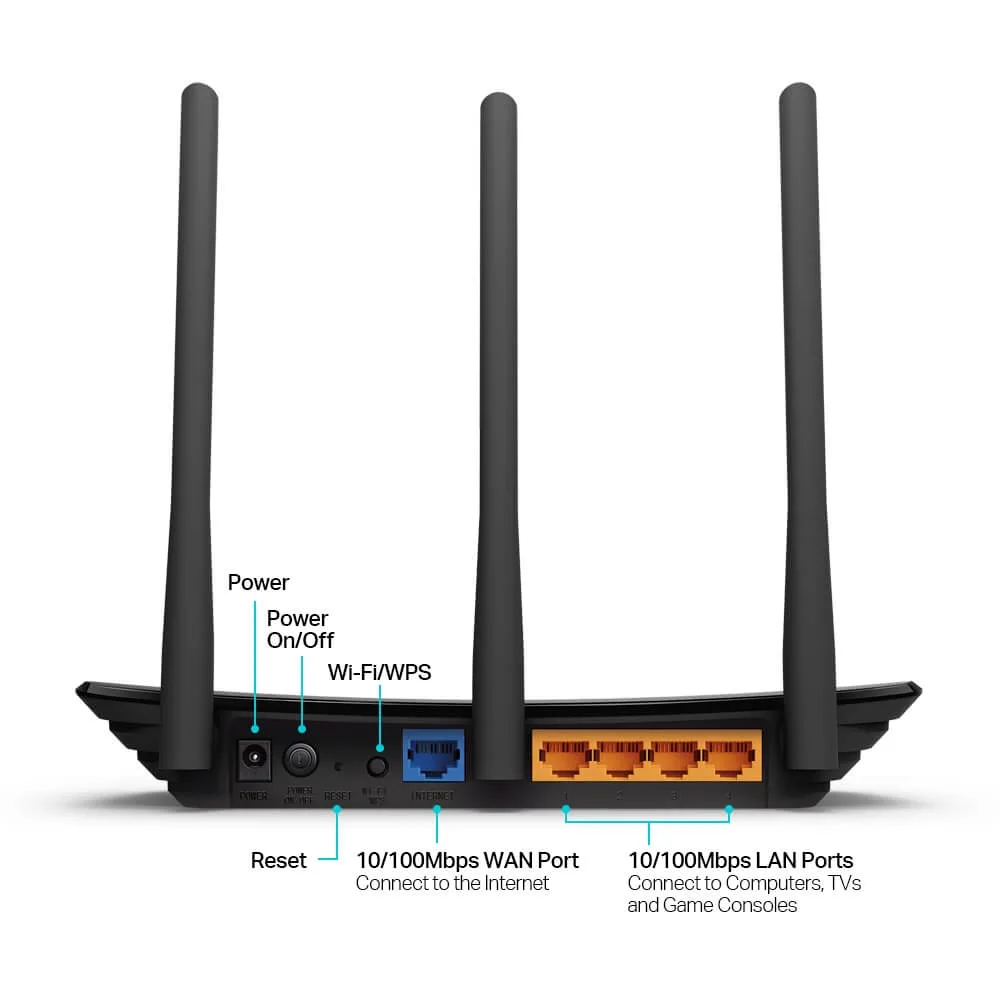

Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
Power | 9 V ⎓ 0.6 A |
Security
Wi-Fi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 2.4 GHz Guest Network |
Software
Protocols | IPv4 IPv6 |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPOE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping |
DHCP | Address Reservation DHCP Client List Server |
DDNS | NO-IP Comex DYN DNS |
Physical
Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35mm) |
Package Contents | Wi-Fi Router TL-WR940N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
Others
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Test Data
Wi-Fi Transmission Power | FCC: <30dBm |
Wi-Fi Reception Sensitivity | 450M: -68dBm@10% PER 216M: -70dBm@10% PER 130M: -78dBm@10% PER 54M: -74dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -93dBm@8% PER |
