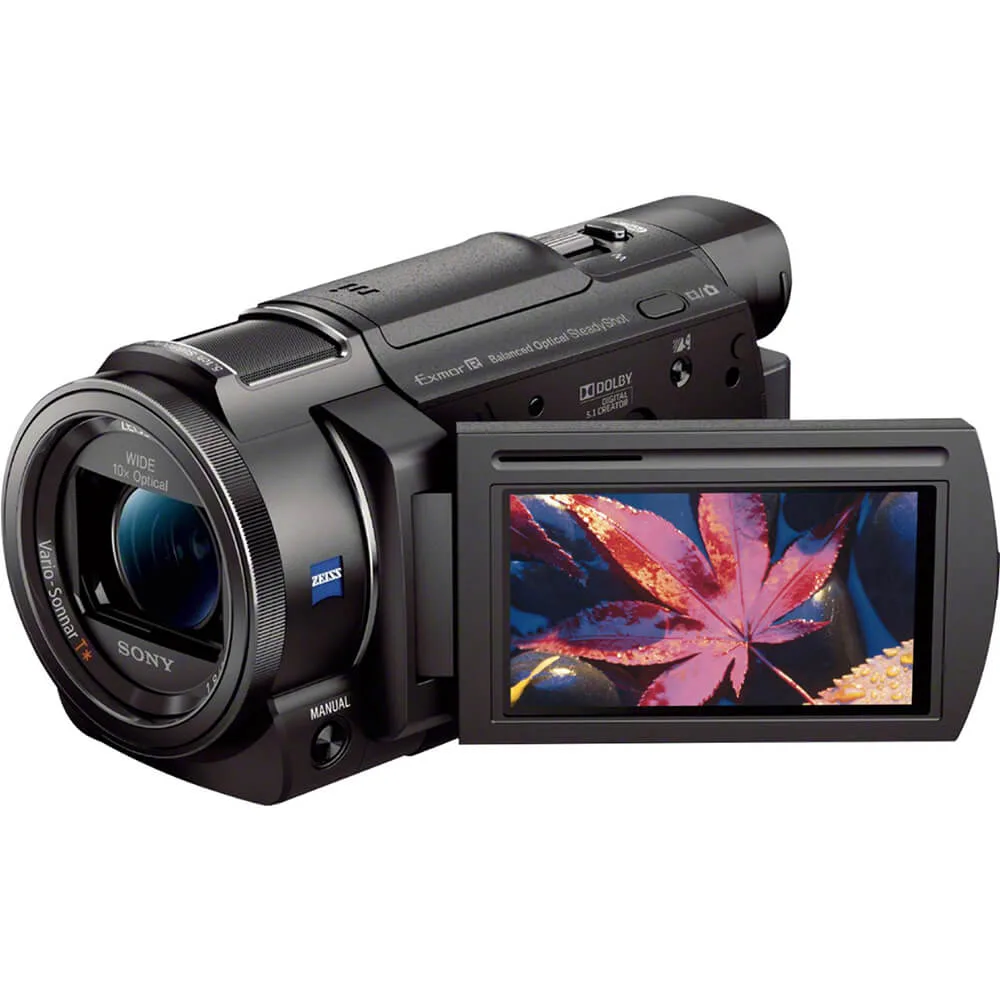

Sony FDR-AX33 4K Ultra HD Handycam Camcorder

Sony FDR-AX33 4K Ultra HD Handycam Camcorder is a palm-sized Handycam camcorder that combines 4K video recording and Balanced Optical SteadyShot image stabilization to deliver clear, high-resolution video, even as you follow the action. It is equipped with a wide-angle Zeiss Vario Sonnar T* lens with 10x optical zoom and up to 20x Clear Image zoom and features an Exmor R CMOS sensor with Bionz X image processor that delivers Ultra HD (3840×2160) resolution video at 24 or 30 fps using Sony’s XAVC S codec. It also records 1080p video up to 60 fps in XAVC S or AVCHD and takes up to 20.6MP upscaled (interpolated) still images

4K image quality

Shoot 4K footage with Sony FDR-AX33 Handycam Camcorder that contains about four times more detail than Full HD (3840 x 2160 pixels vs. 1920 x 1080) footage, and capture more of the incredible qualities that bring images to vibrant life.

Extra-light, extra-compact body

The Sony FDR-AX33 Handycam Camcorder is over 30% smaller and over 20% lighter than current model the FDR-AX100, making it the most mobile 4K camcorder on the market.

Balanced Optical SteadyShot™

Our advanced image stabilization enables blur-free footage, even when the recording circumstances are shaky or bumpy.

Trimming Playback

You can select a specific portion of the picture and play it back in Full HD, thanks to 4K high resolution. Also, you can change trimming size1 with the zoom lever or on-screen display icon.

Super-sampled Full HD playback

Enhance your viewing experience even without a 4K television. Using super-sampling, the FDR-AX33 automatically down-converts 4K footage to exceptionally detailed Full HD.

Advanced shooting features

Enjoy total customization with ergonomic manual controls. Use the intuitive multi-purpose manual ring to adjust zoom, focus, exposure, IRIS, shutter speed, AE shift, or white balance shift mode after using the manual button to select the mode. The electronic viewfinder offers accurate image preview.

Live Streaming via Ustream (currently IBM Cloud Video)

From performances to sports events, some things are best seen in real time. Share scenes as they happen with high-quality picture and sound.

Multi Camera Control

More shots mean more editing opportunities. Easily record footage from a variety of angles, whether using cameras mounted directly to the FDR-AX33 or triggered wirelessly. Multi Camera Control makes it easy to sync shooting settings on all devices.

Highlight Movie Maker

A versatile function to streamline movie editing, Highlight Movie Maker offers several time-saving features. Add highlight points to key moments while recording, and let the camcorder automatically sync your transitions to your chosen soundtrack.

Exmor R™ CMOS sensor

This cutting-edge sensor enhances image clarity, reduces noise in dark environments, and enables soft background defocusing.

BIONZ X™ image processor

The advanced BIONZ X image processing engine helps achieve more naturally vivid and lifelike image quality as well as faster processing capabilities.

Wide-angle ZEISS Vario-Sonnar T* lens

This 29.8mm wide-angle ZEISS lens providing 10x optical zoom is not only ideal for capturing grand landscapes, among a range of other scenes — it is fine-tuned specifically for 4K.

Exceptional image quality

By employing XAVC S format, which was developed from the XAVC format for professional use, 4K Ultra HD and high-bitrate recording of incredible quality are realized. Yet, XAVC S data is compressed so that it is more manageable for general consumers.

20.6MP still image capture

Sometimes you don’t need — or want — video. Put your video camera in still image mode and capture amazing high-quality single images as easily as you do with a still camera.

Superb night shooting

This feature uses infrared light to take pictures even in complete darkness. By using NIGHTSHOT, parents can easily capture children’s cute sleeping faces.

Motion Shot Video

This convenient feature allows playback of a dramatic sequence of superimposed images to trace every split second of action, a powerful tool for analyzing sports motion on screen. During playback, you can adjust the interval between images, or pause to capture still images to share with friends.

Dual Video Recording

Record two movies at the same time — one in the maximum-quality XAVC S or AVCHD format and another in MP4 format. That way you’ve got a small file ready for instant sharing, plus a professional-grade file for further editing.

Face Detection and Smile Shutter

Use Face Detection to optimize focus, exposure and colour for people who are the most important subject of a shot. You can priorities a subject’s face by touching it on the LCD. And with Smile Shutter, the FDR-AX33 can also automatically capture still shots of great (but fleeting) smiles, even while recording movies.

Lock-on AF

Enhances the tracking of moving subjects by using the optimal AF point at all times, and adjusting the target frame size to match your subject’s characteristics. Thanks to advances in phase-detection AF, it’s now more accurate than ever — so lock on and shoot fast-moving targets with precision.

5.1ch microphone

Record clear sound that accurately captures the atmosphere of the scene, and enjoy surround sound playback on your home theatre system. Level meters on the LCD panel provide visual monitoring of each channel’s levels.

Auto Wind Noise Reduction

Using an advanced sound-analysis algorithm, this feature eliminates wind noise — the biggest culprit of bad outdoor audio.

My Voice Cancelling

Reduce the intensity of behind-camera sounds, whether you are talking to or cheering on your subject as you shoot.

Golf Shot

Analyze your swing with no need for fancy equipment. Golf Shot mode lets you capture video and stills of each step of your swing.

Xtra Fine LCD with WhiteMagic™

The high-precision Xtra Fine LCD features a WhiteMagic display that uses white pixels in addition to RGB pixels to boost screen brightness, allowing users to see subtle details and tones on the screen in all types of shooting environments, including outdoors in bright sunlight.

Built-in USB cable

The built-in USB cable stowed in the hand strap is very convenient for extra-quick charging and connection to a PC, so there is no need to pack a bulky extra USB cable or AC adapter. For charging without a PC, use a compact AC-USB adapter (optional).

New software is now available.

Power up your camera to further enhance shooting ease.

Sony FDR-AX33 Handycam Camcorder Specification

Sensor

SENSOR TYPE: 1/2.3 type(7.76mm) back-illuminated Exmor R CMOS Sensor

EFFECTIVE PIXELS (VIDEO): approx. 8.29 Megapixels (16:9)1

EFFECTIVE PIXELS (STILL IMAGE): approx. 10.3 Megapixels (16:9)/approx. 7.74 Megapixels (4:3)

Processor

IMAGE PROCESSOR: BIONZ X image processor

Lens

LENS TYPE: ZEISS Vario-Sonnar T*

FILTER DIAMETER: 52mm

LENS COVER: Auto

APERTURE: F1.8-F3.4

FOCAL DISTANCE: f = 3.8-38.0mm

FOCAL LENGTH (35MM EQUIVALENT) (VIDEO): f=29.8-298.0mm (16:9)

FOCAL LENGTH (35MM EQUIVALENT) (STILL IMAGE): f=26.8-268.0mm (16:9), f=32.8-328.0mm (4:3)

MINIMUM FOCUS DISTANCE: approx.1cm(Wide), approx.80cm(Tele), approx.13/32inch(Wide), approx.31 1/2inch(Tele)

IRIS DIAPHRAGM: 6 blades

Zoom

OPTICAL ZOOM: 10x

CLEAR IMAGE ZOOM: 4K: 15x HD: 20×2

DIGITAL ZOOM: 120×3

Viewfinder

VIEWFINDER TYPE: 0.6cm (0.24 type)/Color 1 555 200dots equivalent

FIELD OF VIEW: 100%

DIOPTER ADJUSTMENT: Yes (-4.0 to +3.0 m-1)

LCD

SCREEN TYPE: 7.5cm (3.0 type) Xtra Fine LCD™ display (921 600dots) Wide (16:9)

TOUCH PANEL: Yes

BRIGHTNESS CONTROL: Yes (Menu)

MARKER/GRID DISPLAY: Grid Line

ANGLE ADJUSTMENT: Opening Angle:max.90 deg., Turning Angle:max.270 deg.

Image Stabilization

IMAGE STABILISATION TYPE: Balanced Optical SteadyShot™ image stabilization w/ Active mode (Wide to Tele)

Focus

FOCUS TYPE: Contrast AF

FOCUS MODE: Auto/Manual (Touch Panel/Ring)

FOCUS AREA: Full range Focus/Spot Focus

LOCK-ON AF: Yes

MANUAL FOCUS ASSIST: Magnified display for precise manual focus, Peaking Display

Exposure

MODE: Auto, Flexible Spot (Touch Panel), Manual (Menu/Ring)

METERING MODES: Multi-segment/Spot

EXPOSURE COMPENSATION: AE Shift (Touch Panel/Ring)

LOW LUX MODE: Yes

AUTO IRIS CONTROL: F1.8-F9.6

MANUAL IRIS CONTROL: F1.8-F9.6

MANUAL EXPOSURE ASSIST: Zebra Pattern Display

BACKLIGHT COMPENSATION: Yes(Auto)

GAIN CONTROL: Auto

AGC LIMIT: Yes

MINIMUM ILLUMINATION: 4K: Standard:9 Lux (1/50 Shutter Speed) HD: Standard:6 Lux (1/50 Shutter Speed), 4K: Low Lux 5 lux (1/25 Shutter Speed) HD: Low Lux 3lux (1/25 Shutter Speed), NightShot:0 lux (1/50 Shutter Speed)

Shutter Speed

AUTO CONTROL RANGE: 1/6-1/10000

STANDARD: 1/50-1/10000

MANUAL IRIS CONTROL (PHOTO MODE): 1/25-1/10000

MANUAL SHUTTER: 1/6-1/10000

SMOOTH SLOW: 1/215-1/10000

White balance

WHITE BALANCE MODES: Auto/One push/Outdoor/Indoor

WHITE BALANCE SHIFT: Yes

Flash

FLASH METERING SYSTEM: Pre-flash TTL7

FLASH COMPENSATION: Yes (3 steps)

FLASH MODE: Auto/On/OFF

Storage Media

MEDIA TYPE: XAVC S 4K(100Mbps): SDXC Memory Card (UHS-I U3 or Higher), XAVC S 4K(60Mbps): SDXC Memory Card (Class10 or Higher), XAVC S HD: SDXC Memory Card (Class10 or Higher), AVCHD, still: Memory Stick PRO Duo (Mark 2), Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD/SDHC/SDXC Memory Card (Class 4 or Higher)

Recording

RECORDING FORMAT (VIDEO): XAVC S format:MPEG4-AVC/H.264, AVCHD format ver.2.0 compatible:MPEG4-AVC/H.264, MP4: MPEG-4 AVC/H.264

VIDEO RESOLUTION: XAVC S 4K: 3840×2160/25p, 24p, XAVC S HD: 1920×1080/50p, 25p, 24p, AVCHD: 1920×1080/50p(PS), 25p (FX, FH), 24p (FX, FH), 50i (FX, FH), 1440×1080/50i (HQ, LP), MP4: 1280×720 25p

VIDEO RECORDING RATE (ABR / VBR): XAVC S 4K: approx.100Mbps8, XAVC S 4K: approx.60Mbps8, XAVC S HD: approx.50Mbps8, AVCHD PS: approx.28Mbps/FX: approx.24Mbps/FH: approx.17Mbps/HQ: approx.9Mbps/LP: approx.5Mbps89, MP4: approx.3Mbps8

RECORDING FORMAT (STILL IMAGE): JPEG (DCF Ver.2.0, Exif Ver.2.3, MPF Baseline compliant)

STILL IMAGE SIZE (PHOTO MODE): L: 20.6 Megapixels 16:9 (6048×3400), 15.4 Megapixels 4:3 (4528×3400), M: 10.3 Megapixels 16:9 (4288×2408), 7.7 Megapixels 4:3 (3216×2408), S: 2.1 Megapixels 16:9 (1920×1080), 0.3 Megapixels 4:3 (640×480)

STILL IMAGE SIZE (MOVIE MODE): M: 10.3 Megapixels 16:9 (4288×2408), S: 2.1 Megapixels 16:9 (1920×1080)

STILL IMAGE SIZE (DUAL RECORD): M: 10.3 Megapixels 16:9 (4288×2408)61011, S: 2.1 Megapixels 16:9 (1920×1080)61011

Audio

MICROPHONE: Built-in Zoom Microphone

AUDIO RECORDING FORMAT: MPEG-4 Linear PCM 2ch(48kHz/16bit)12, Dolby Digital 5.1ch, Dolby Digital 5.1Creator13, Dolby Digital 2ch Stereo, Dolby Digital Stereo Creator13, MPEG-4 AAC-LC 2ch14

MIC LEVEL CONTROL: Yes (31steps)

AUTO WIND NOISE REDUCTION: Yes (On/Off)

MY VOICE CANCELING: Yes

SPEAKER: Monaural Speaker

Advanced Feature

HIGH SPEED REC: Yes

SCENE SELECTION: Auto/Night Scene/Sunrise & Sunset/Fireworks/Landscape/Portrait/Spotlight/Beach/Snow

NIGHTSHOT INFRARED SYSTEM: Yes

OTHER FEATURES: Face Detection6, Cinema tone, Golf Shot13, Smooth Slow Rec13, Fader Effect(s)(White/Black)13, Intelligent Auto (Portrait/Baby/Walk/Tripod/Backlight/Landscape/Spotlight/Twilight/Macro/Low light/Auto wind noise reduction), Smile Shutter (Off/Dual Capture/Always On )61011, Red Eye Reduction(Yes7), Direct Copy

Playback

FAST PLAYBACK: About 5 times/10 times/30 times/60 times

SLOW PLAYBACK: Forward:1/5 speed, Reverse:1/2 speed

TRIMMING PLAYBACK: Yes

HIGHLIGHT MOVIE MAKER: Yes13, Highlight BGM (Preinstalled 6 music files)

MOTION SHOT VIDEO: Yes

SLIDE SHOW (STILL IMAGE): Slide Show

Wireless Function

WI-FI®: Yes (Wi-Fi Compatible, IEEE 802.11b/g/n (2.4GHz band))

NFC™: Yes (NFC forum Type 3 Tag compatible)

LIVE STREAMING: Yes

MULTI CAMERA CONTROL: Yes

Terminal / Shoe

ACCESSORY SHOE: Yes (Multi Interface Shoe)

HDMI TERMINAL: Yes (HDMI micro)

MULTI/MICRO USB TERMINAL: Yes

REMOTE TERMINAL: integrated into Multi/Micro USB Terminal

STD OUTPUT: Composite Video Out (AV CABLE (sold separately))

MICROPHONE INPUT: Stereo Mini jack

HEADPHONE JACK: Stereo Mini jack

MEMORY CARD SLOT: Memory Stick PRO Duo and SD/SDHC/SDXC compatible

DC IN: Yes

Power

BATTERY TYPE: Info LITHIUM with Accu Power Meter System (V Series)

POWER CONSUMPTION (LCD): 4K:5.6W

POWER CONSUMPTION (VIEWFINDER): 4K:5.6W

POWER REQUIREMENTS: 6.8V/7.3V (battery pack), 8.4V (AC Adaptor)

CHARGE ON CAMCORDER (CHARGING TIME WITH SUPPLIED BATTERY): Yes (approx. 3h 25min)

USB CHARGING: DC 5V 1500mA
