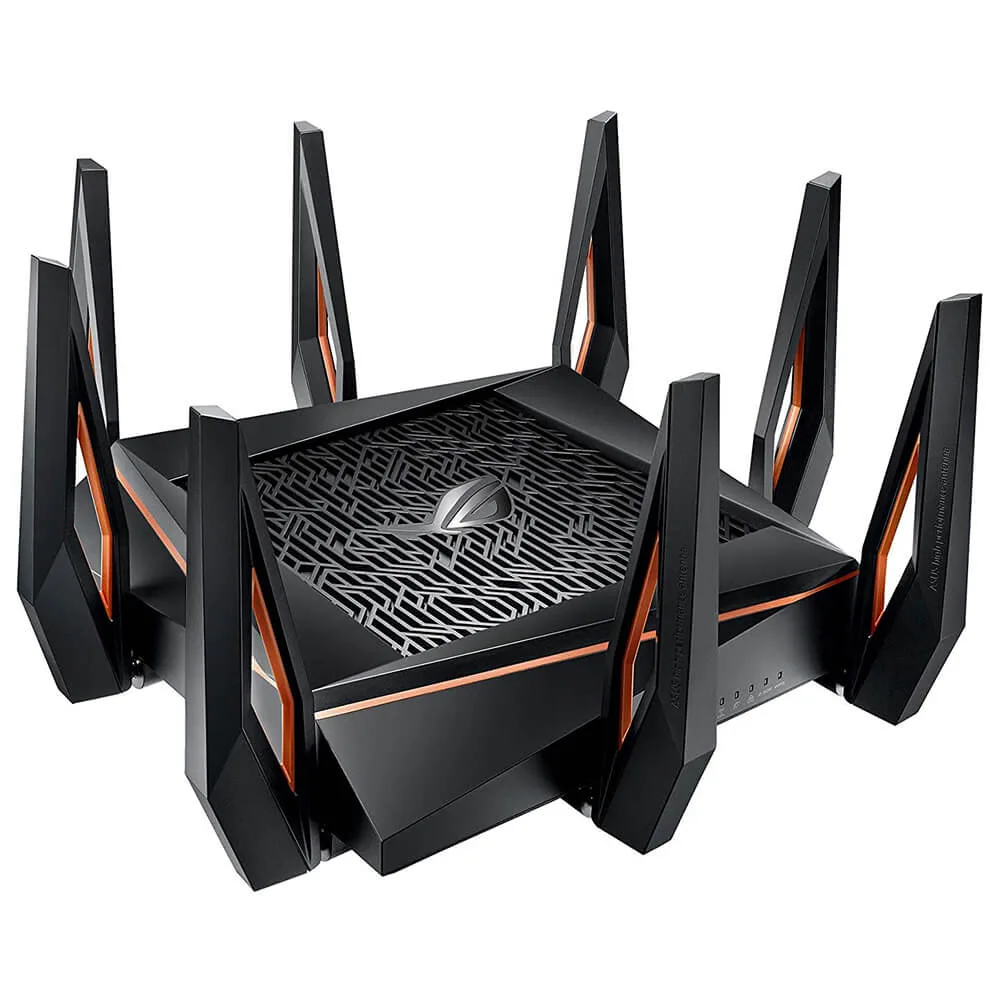

Asus ROG Rapture GT AX11000 Tri-band WiFi Gaming Router

Built for gaming with high speed & Gigabit ISP services, the Asus ROG Rapture GT AX11000 Tri-band WiFi Gaming Router offers that fastest Wi Fi for current 802.11AC devices as well as next Gen 802.11ax devices. The GT AX11000 produces Gigabit speeds while providing extensive range for devices that demand Fast & consistent gaming, uploading, and streaming all at the same time. Power supply AC Input 110V~240V(50~60Hz)

Specification

Network Standard

Wi-Fi 6 (802.11ax)

Product Segment

AX11000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8

Transmit/Receive

2.4 GHz 4 x 4

5 GHz-1 4 x 4

5 GHz-2 4 x 4

Processor

1.8GHz quad-core processor

Memory

256MB NAND flash and 1GB DDR3 SDRAM

Boosts speed

“OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth”

Operating Frequency

Tri-band Wi-Fi

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, Multi-Gig Ethernet port 2.5G/1G x1 USB 3.1 Gen 1 x 2

Button

WPS Button, Reset Button, Power Button, Wireless on/off Button, Boost Key

LED Indicator

Power x 1 Wi-Fi x 2 WAN x 1 LAN x 1 USB x 2 WPS x 1 2.5G Port x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current

Package content

GT-AX11000 Extreme Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

AiMesh

AiMesh: Yes

Primary AiMesh router: Yes

AiMesh node: Yes

Router APP

ASUS Router APP: Yes

Game

Game Boost/acceleration: Yes

Game Radar: Yes

WTFast: Yes

Geforce Now: No

UU boost (CN only: No

ROG_First: Yes

OpenNAT (Game Profile): Yes

Gaming port: Yes

Alexa

Support Alexa skill: Yes

IFTTT

Support IFTTT: Yes

AiProtection

AiProtection: AiProtection Pro

Router Security Assessment: Yes

Malicious site blocking: Yes

Two-Way IPS: Yes

Infected Device Prevention and Blocking: Yes

Parental Control

Parental Control: Yes

Parental Control Customized Internet schedule: Yes

Maximum Parental Control profile:16

Maximum Parental Control content filter rule:16

Traffic Control

Adaptive QoS: Yes

Bandwidth Monitor: Yes

Bandwidth limiter: Yes

Maximum Bandwidth limiter rule:32

Traditional QoS: Yes

Maximum Traditional QoS rule: 32

Traffic Monitor: Yes

Real-time traffic monitor: Yes

Wired Traffic Monitor: Yes

Wireless Traffic Monitor: Yes

Traffic Analyzer: Yes

Traffic analysis period: Daily, Weekly, Monthly

Website history: Yes

Wireless

IPv6: Yes

MU-MIMO: No

Wi-Fi Encryption: Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise

UTF-8 SSID: Yes

Guest Network: Yes

Maximum Guest Network rule: 2.4GHz x3, 5GHz-1 x3, 5GHz2 x3

Guest Network Encryption: Open system, WPA/WPA2-Personal

WPS: Yes

Wi-Fi MAC address filter: Yes

Maximum MAC filters: 64

Wireless scheduler: Yes

Wi-Fi Radar: Yes

Airtime fairness: Yes

RADIUS Server: Yes

Universal beamforming: Yes

WAN

Explicit beamforming: Yes

Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN: Yes

WAN Aggregation:  Yes

3G/4G LTE dongle: Yes

Android tethering: Yes

Port forwarding: Yes

Maximum port forwarding rule: 64

Port triggering: Yes

Maximum port triggering rule: 32

DMZ: Yes

DDNS: Yes

NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

Let’s Encrypt: Yes

DHCP Server: Yes

IGMP snooping: Yes

IPTV: Yes

LAN Link Aggregation: Yes

Manually assign IP address: Yes

Maximum manually assign IP address rule: 64

VPN

VPN Client L2PT: Yes

VPN Client OVPN: Yes

VPN Client PPTP: Yes

VPN Server IPSec: Yes

VPN Server OVPN: Yes

VPN Server PPTP: Yes

VPN Fusion: Yes

USB application

File System: HFS+, NTFS, vFAT, ext2, ext3, ext4

HDD hibernation: Yes

Safely Remove disk: Yes

AiCloud: Yes

Download master: Yes

AiDisk: Yes

Media Server: Yes

Time Machine: Yes

Samba Server: Yes

FTP Server: Yes

Shared Folder privileges: Yes

Administration

Operating mode: Router (AiMesh router),  AiMesh node, Access point, Repeater, Media bridge

Operating system: ASUSWRT

Free OS upgrade: Yes

Firewall: Yes

Maximum Firewall keyword filter:32

Maximum Firewall network service filter:32

Maximum Firewall URL filter:64

Wake on LAN (WOL): Yes

SSH: Yes

Configuration backup and restore: Yes

Diagnosis tools: Yes

Feedback system: Yes

System log: Yes
