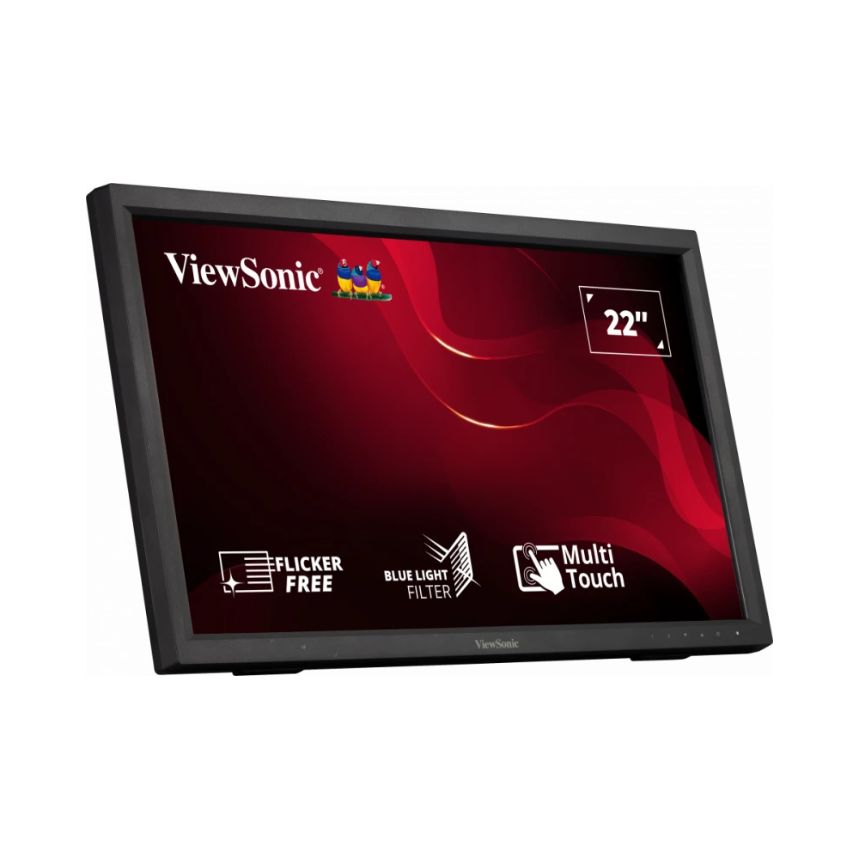

ViewSonic TD2223 22-inch IR Touch Monitor
ViewSonic TD2223 22-inch IR Touch Monitor. The ViewSonic is a 22ā IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Product Details
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. Whatās more, there is a magnetic pen placeholder on the base.
The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, itās resistant to surface damage caused by sharp objects.
Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications
Display Size | 22 Inch |
Display Type | LED |
Panel Type | TN |
Resolution | FHD (1920 x 1080) |
Pixel pitch(MM) | 0.248 mm (H) x 0.248 mm (V) |
Display Surface | Glossy, Hard Coating (7H) |
Aspect Ratio | 16:9 |
Viewing Angle | 170Āŗ horizontal, 160Āŗ vertical |
Brightness | 250 cd/mĀ² (typ) |
Contrast Ratio | Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 20M:1 |
Refresh Rate | 75Hz |
Color Support | Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) |
Color Gamut | 72% NTSC 103% sRGB |
Response Time | (Typical GTG): 5ms (GTG w/OD): 5ms (Typical Tr+Tf): 5ms |
Curvature | Flat |
Others Features | Cover Glass Thickness: 2mm Viewable Area (in.): 21.5 Backlight Life (Hours): 30000 Hrs (Min) |
Color Temperature Selection | 32Ā°F to 104Ā°F (0Ā°C to 40Ā°C) |
Flicker Free | Yes |
Low Blue Light | Yes |
Others | Digital Sync: TMDS – DVI-D, TMDS – HDMI (v1.4) Analog Sync: Separate/Composite/SOG – RGB Analog |
Speaker (Built In) | Yes |
Speaker Details | 2Watts x2 |
DVI | DVI-D x 1 |
VGA | VGA x 1 |
HDMI | HDMI 1.4 x 1 |

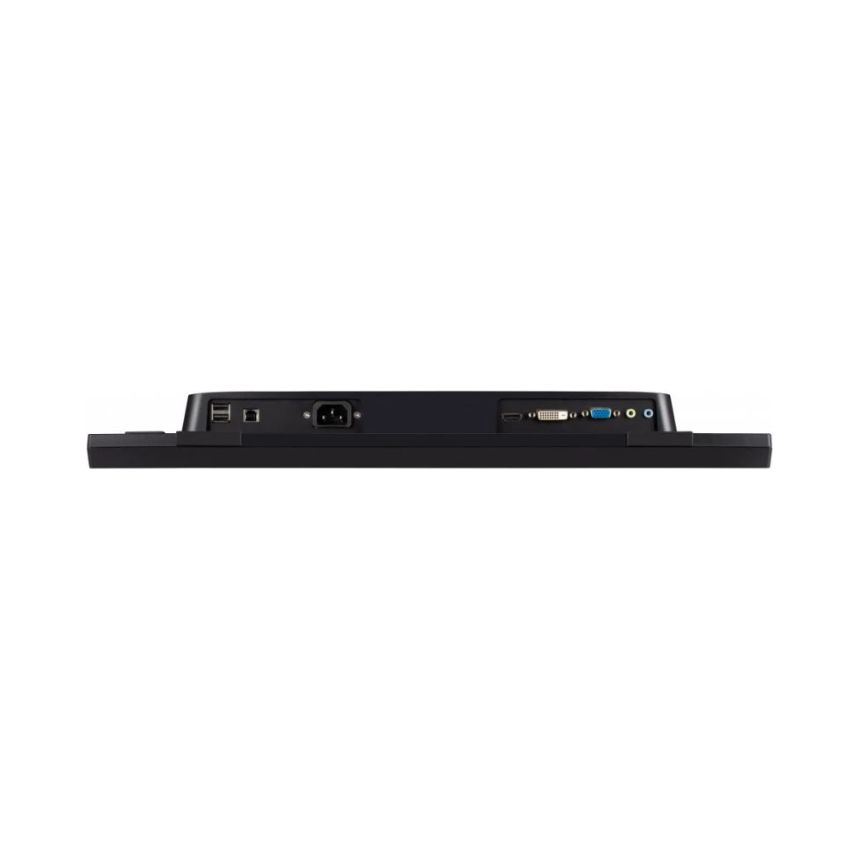

Port(s) | USB 2.0 Type A x 2 USB 2.0 Type B x 1 |
Audio Jack | 3.5mm Audio In x 1 3.5mm Audio Out x 1 |
Others | Power in: 3-pin Socket (IEC C14 / CEE22) |
Tilt | 20Āŗ / 40Āŗ |
Security Locker | Kensington Lock Slot |
Color | Black |
Dimension | Packaging (in.): 22.8 x 15.9 x 6.5 Physical (in.): 20.5 x 13.1 x 4 Physical Without Stand (in.): 20.5 x 12.5 x 2.4 Packaging (mm): 580 x 405 x 164 Physical (mm): 521 x 334 x 101 Physical Without Stand (mm): 521 x 318 x 61 |
Weight | Net (lbs): 9.9 Net Without Stand (lbs): 8.6 Gross (lbs): 13.2 Net (kg): 4.5 Net Without Stand (kg): 3.9 Gross (kg): 6 |
Power Type | Internal |
Power Consumption | Consumption (typical): 12.5W Consumption (max): 14W |
Voltage | AC 100-240V, 50/60 Hz |
Others | Eco Mode (Conserve): 8.5W Eco Mode (optimized): 10.5W Stand-by: 0.5W Power Supply: Internal Power Supply |
Warranty | 3 Years warranty |
